Basic Editing & Task Connections

The workflow editor allows you to visually build automations by dragging tasks, selecting elements from web pages, and connecting nodes together to define execution flow.

Overview

In this guide, you’ll learn how to:

• Drag and drop tasks into the canvas
• Extract and use selectors
• Configure task inputs
• Connect tasks correctly
• Understand connection types (data vs control flow)
• Work with more advanced logic flows

1. Adding Tasks to the Canvas

Step 1: Open the Editor

Navigate to the editor page from the Control Center.

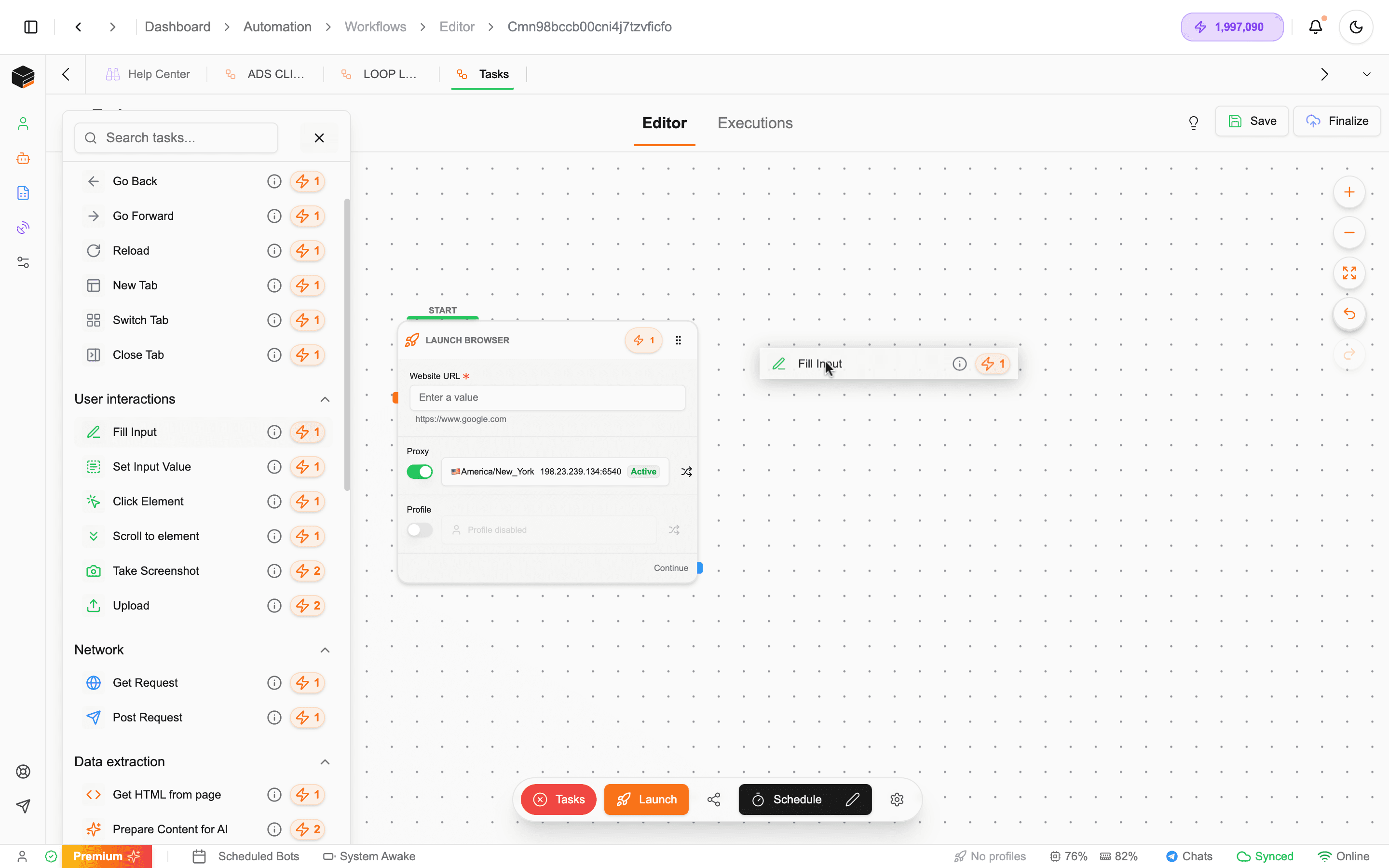

Step 2: Drag and Drop Tasks

From the task panel, drag a task (node) into the canvas.

By default, most workflows start with a Launch Browser task depending on the workflow type.

2. Selecting Elements (Getting Selectors)

For tasks like Click or Fill Input, you must specify which element the browser should interact with.

Step 1: Open Target Website

Run or preview your workflow to open the browser.

Step 2: Inspect the Element

Right-click the element (input, button, etc.) and click Inspect.

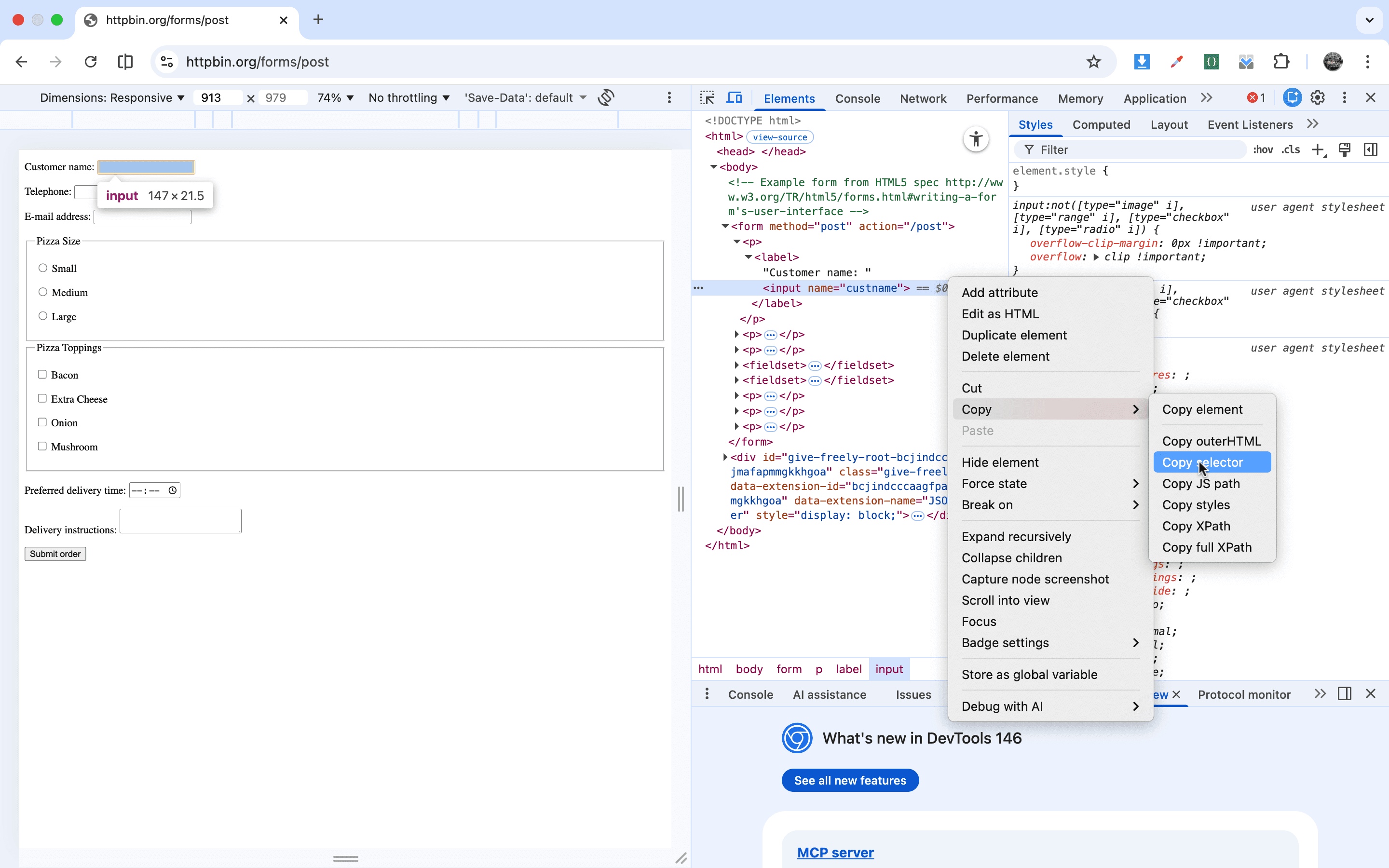

Step 3: Copy Selector

In the developer tools:

• Right-click the highlighted element
• Click Copy → Copy Selector

Step 4: Paste into Task

Paste the selector into the Selector field of your task.

3. Configuring Task Inputs

After adding a selector:

• Provide the value (e.g., text to type into an input)
• Ensure all required fields are filled

Example:

• Selector → input field
• Value → text to type

4. Connecting Tasks

Once tasks are added and configured, you need to connect them to define execution flow.

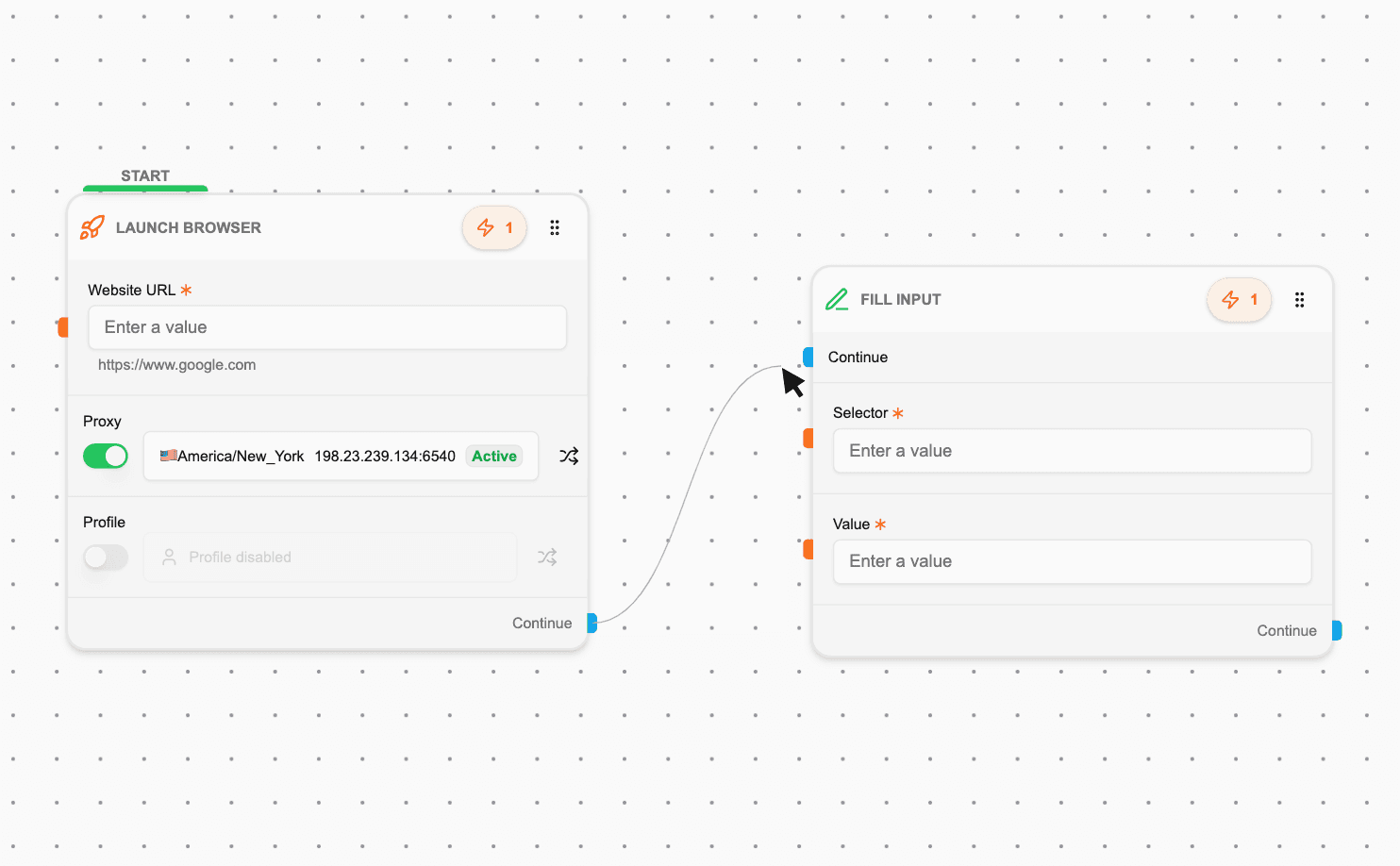

Step 1: Connect Nodes

Drag from one node’s output handle to another node’s input handle.

Step 2: Define Execution Order

Connections determine the order:

• Launch Browser → Fill Input
• Fill Input → Click Button

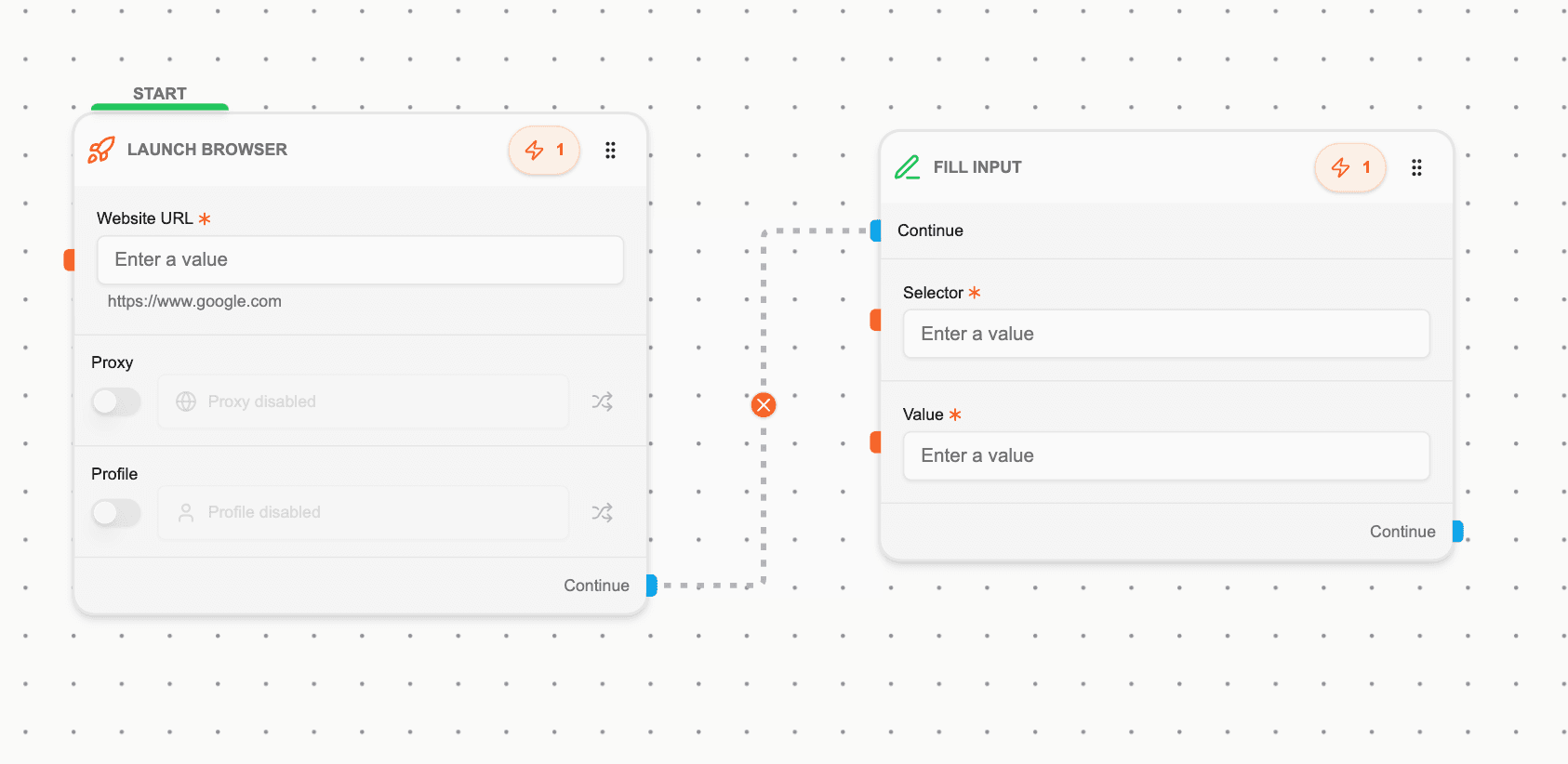

Step 3: View Connected Flow

A successful connection creates a visible edge between tasks.

5. Disconnecting Tasks

To remove a connection:

• Click the edge (line) between two nodes
• Use the cancel/remove button on the connection

This allows you to quickly adjust workflow logic.

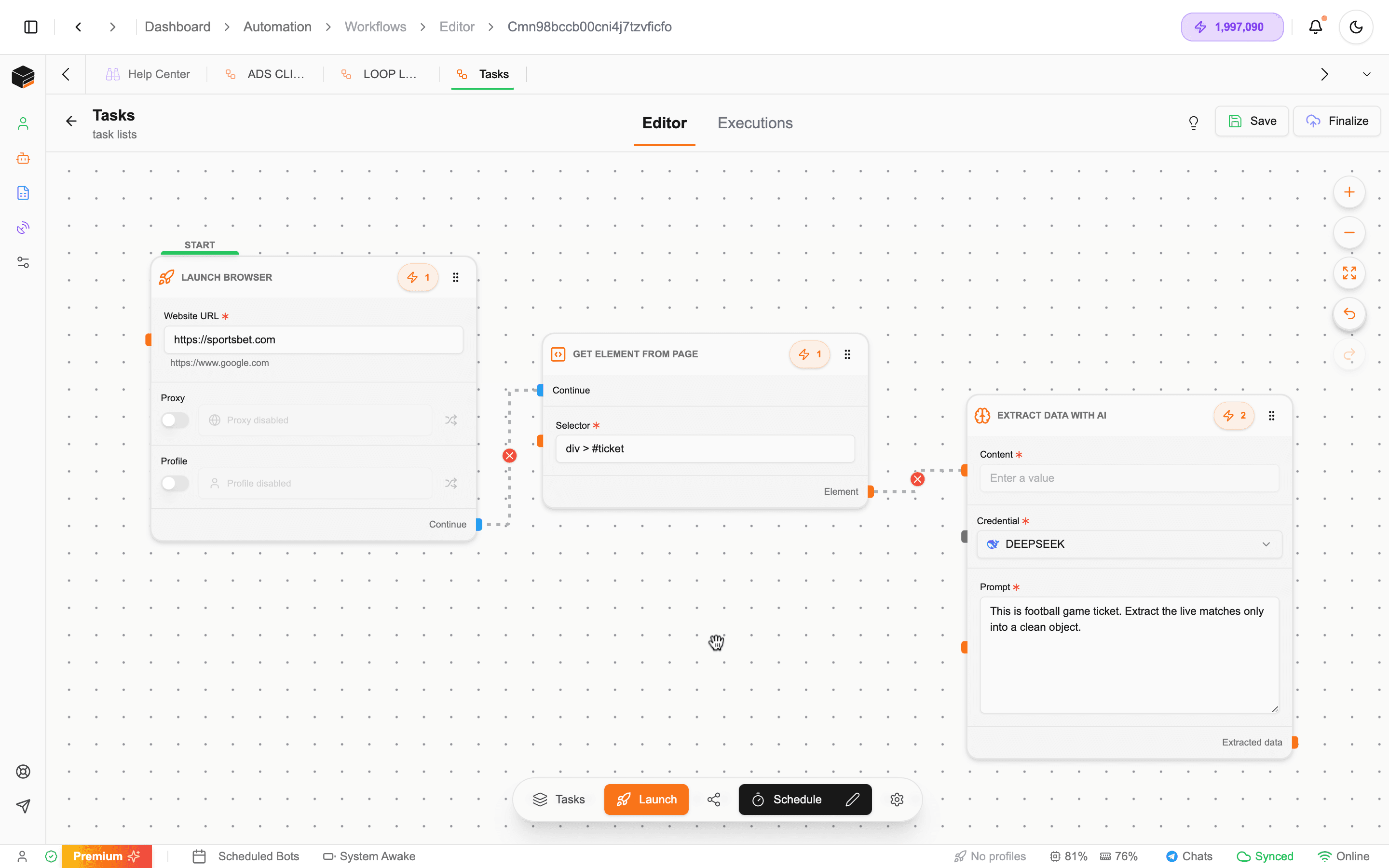

6. Connection Types

Not all connections behave the same. Xenbox uses color-coded connections:

Blue Connections (Control Flow)

• Connect blue → blue
• Used to continue execution
• Does not pass data

Example:

• Launch Browser → Get Element

Orange Connections (Data Flow)

• Connect orange → orange
• Pass data between tasks

Example:

• Get Element → Extract Data with AI

Here, the extracted element is passed into the AI task.

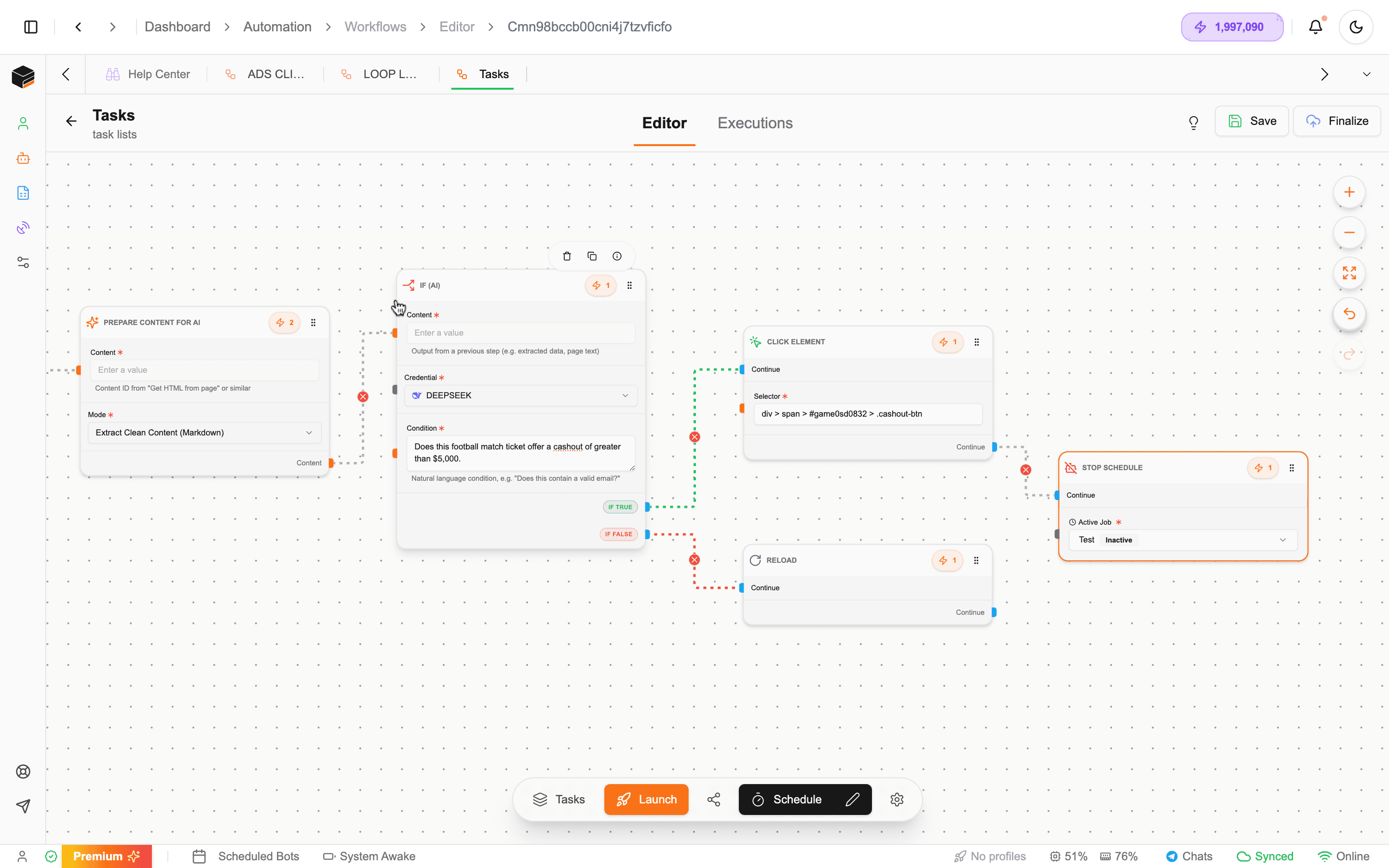

7. Advanced Connections

More complex workflows introduce conditional and multi-path logic.

Example Flow

1. Get Content from Page
2. Prepare Content for AI (clean and structure data)
3. If AI Condition evaluates the result

Conditional Paths

• True Path

  • Click a button
  • Stop a scheduled workflow

• False Path

  • Reload the page
  • Retry logic

Some advanced nodes use additional connection types (e.g., conditional branches) to control logic flow.

Best Practices

Task Setup

• Always confirm required fields (*) are filled
• Validate selectors before running workflows

Connections

• Use blue for flow control
• Use orange when passing data

Debugging

• Disconnect and reconnect nodes to fix logic issues
• Test workflows step-by-step

Maintainability

• Keep workflows clean and readable
• Avoid unnecessary connections

Summary

The editor allows you to visually construct powerful automations:

✅ Drag and drop tasks into the canvas
✅ Extract and use selectors from web pages
✅ Configure task inputs and required fields
✅ Connect tasks using control and data flows
✅ Build advanced logic with conditional branching

Next Steps:

• Automation Settings
• Scheduling Workflows
• Advanced Workflow Design
